TILE R SERIES
Engineered for bold architectural character and timeless sophistication, the Royal profile delivers a commanding presence with premium durability designed for luxury residences and enduring architectural design.
SERIES R OVERVIEW
Bold, timeless, and heritage inspired, the Royal profile is crafted to reflect enduring architectural character with a commanding premium presence. Its classic contours and refined structural design draw inspiration from traditional craftsmanship while incorporating advanced composite performance for modern durability and resilience. Designed for luxury residences, estate homes, and distinguished architectural projects, the Royal profile delivers a sophisticated balance of legacy aesthetics and long-lasting protection built to stand the test of time.
Timeless architectural profile inspired by classic heritage craftsmanship
Strong premium structural appearance designed for luxury and estate-style homes
Advanced composite engineering for exceptional durability and long-term resilience
Refined elevated finish that enhances traditional and contemporary architectural design

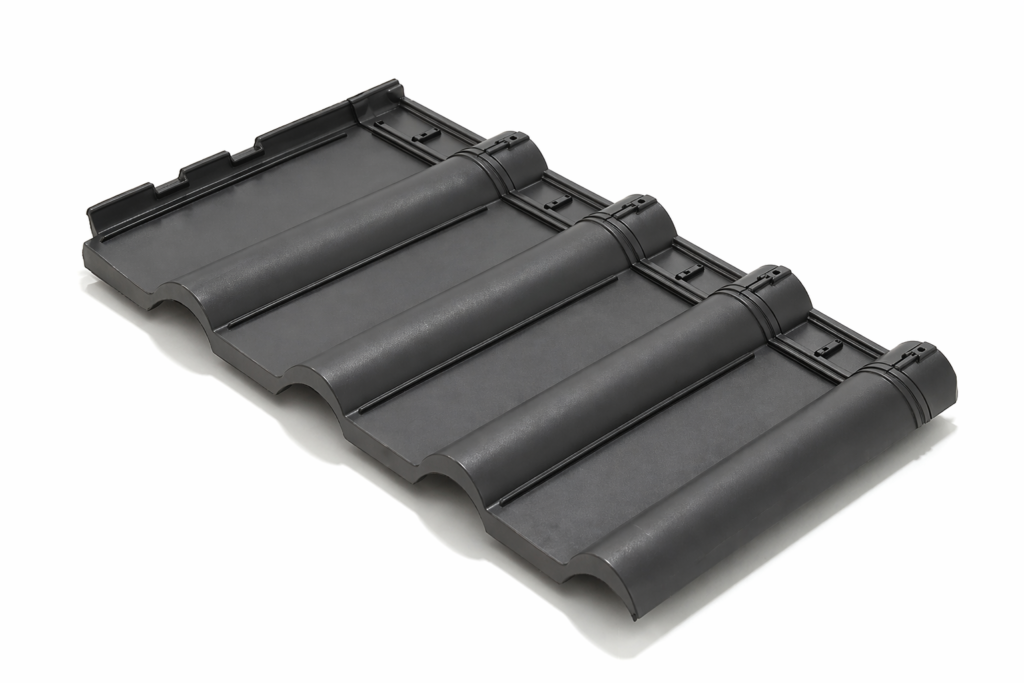

Charcoal Gray

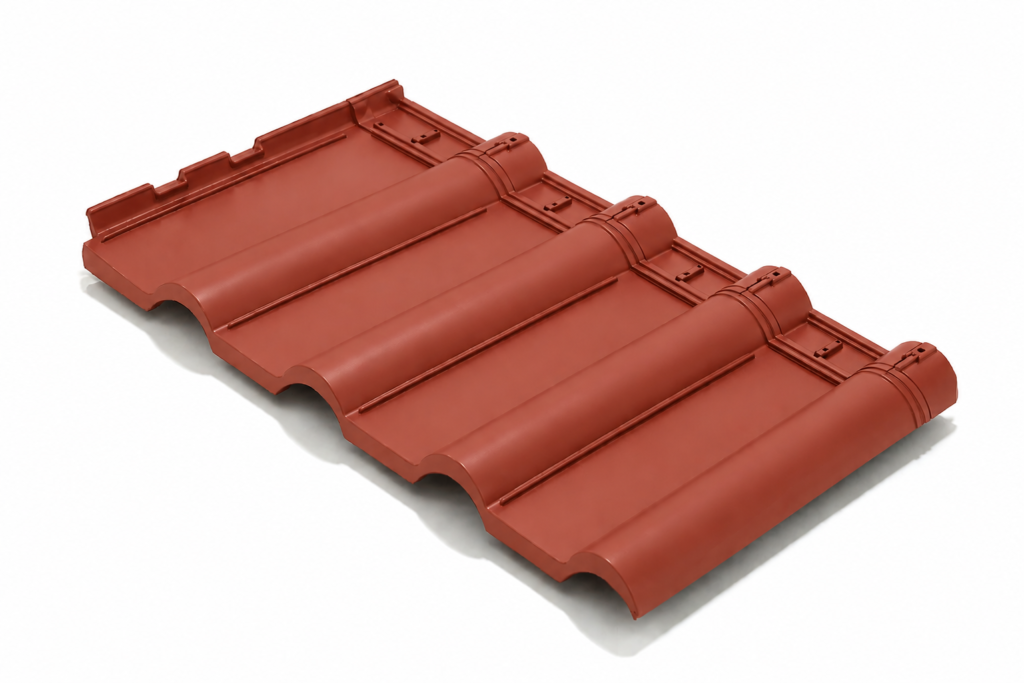

Terracotta

Brick Red
TECHNICAL SPECIFICATIONS
| Product Name | Overall Length (in) | Overall Width (in) | Height/Thickness (in) | Weight (lbs) | Effective Size L×W (in) |

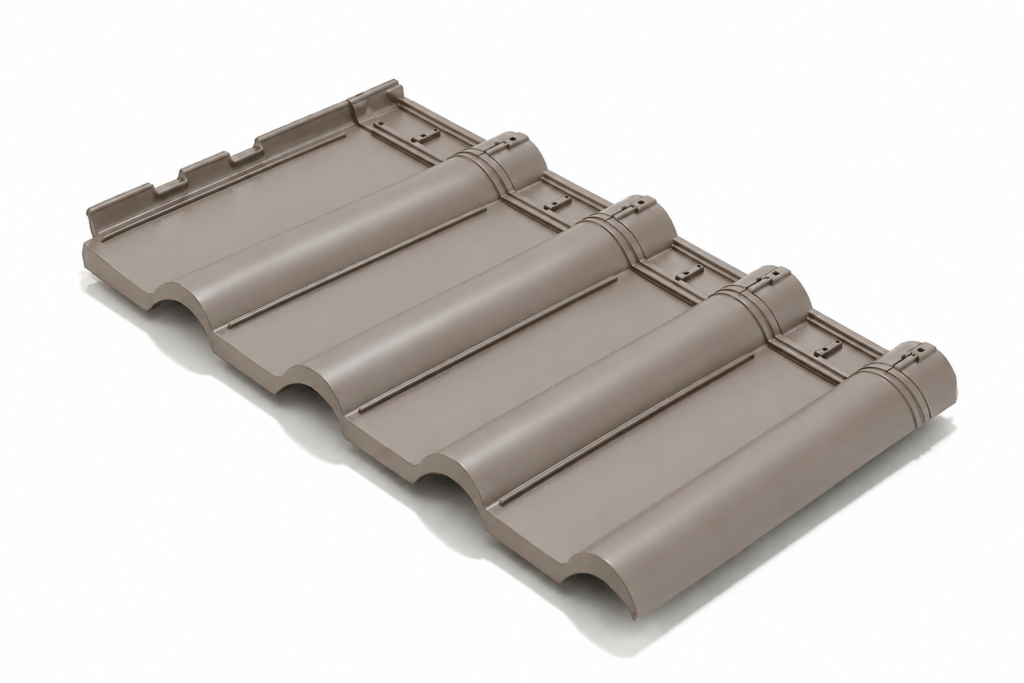

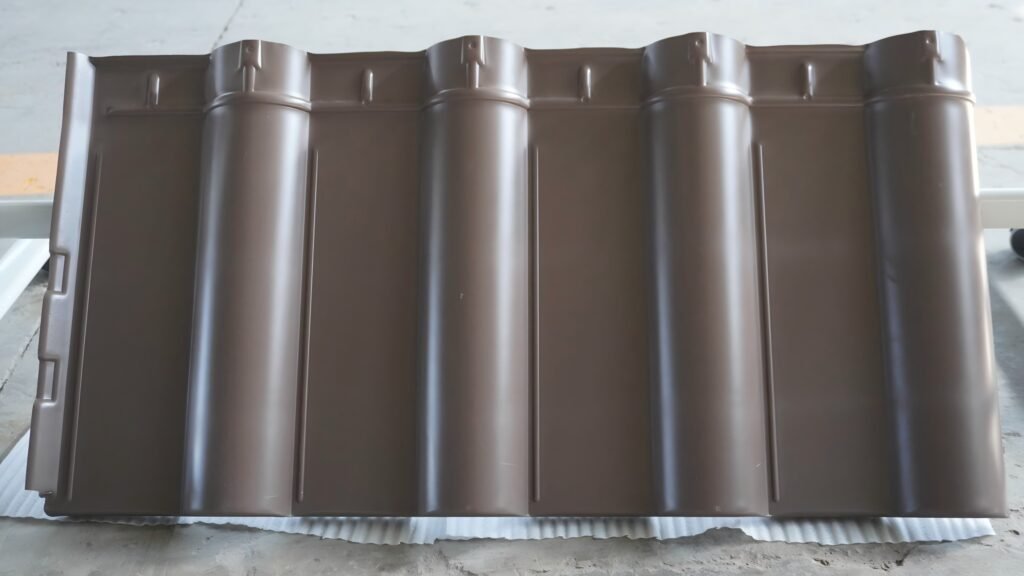

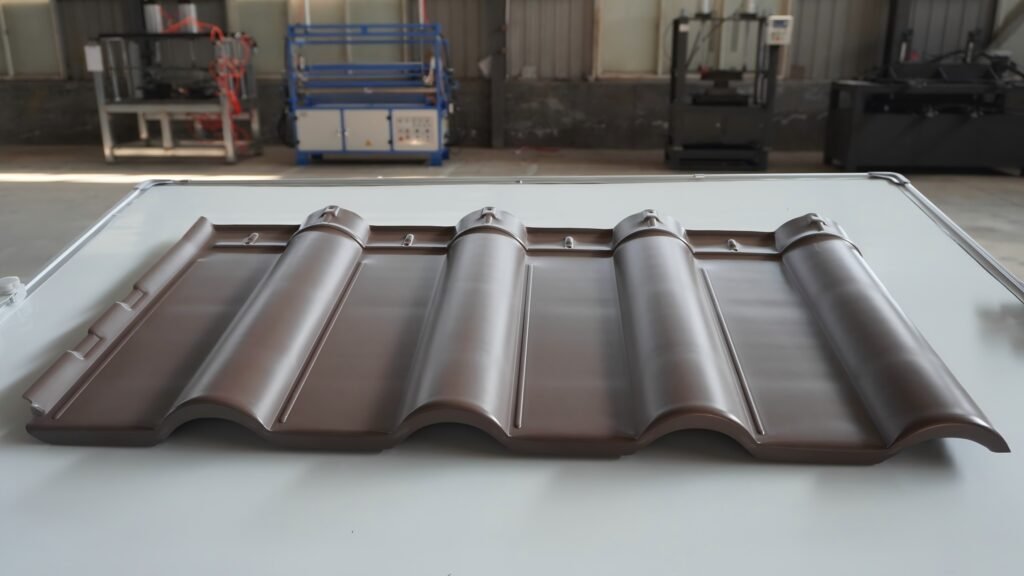

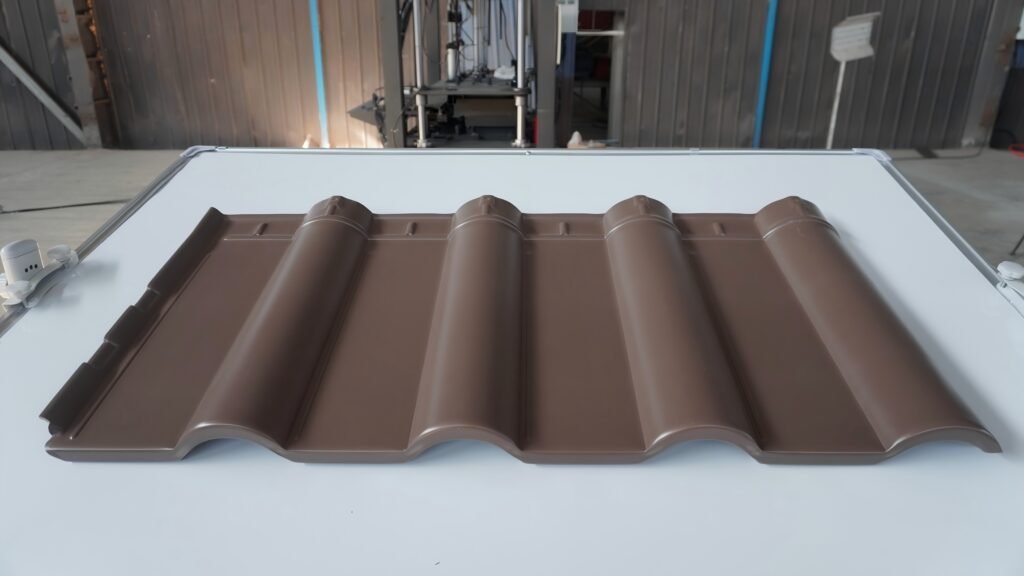

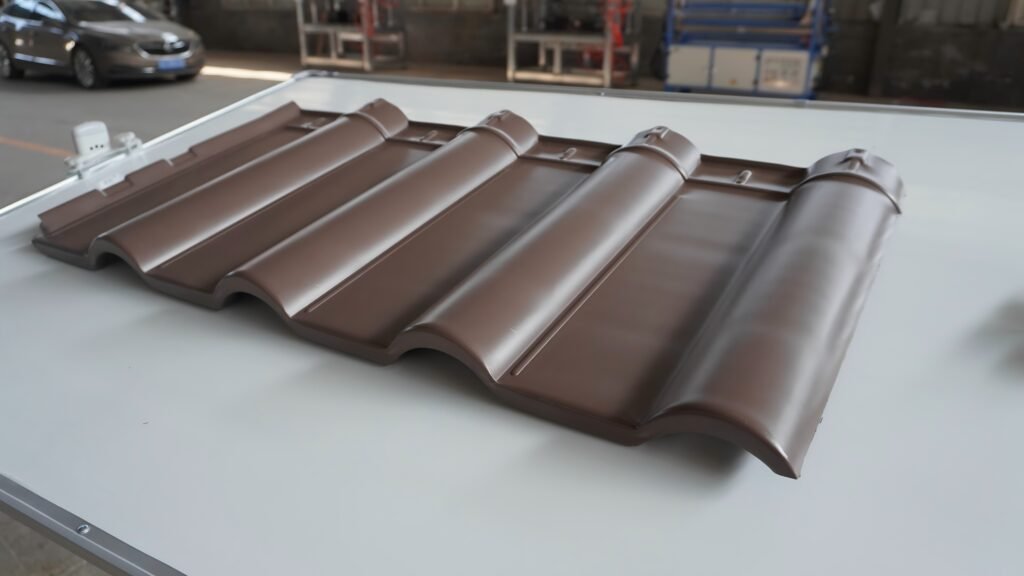

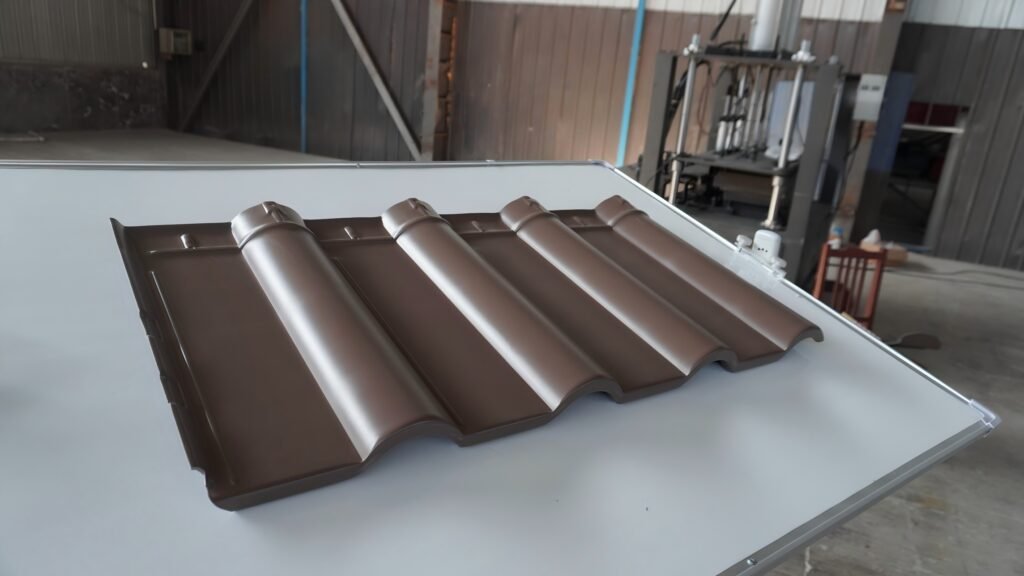

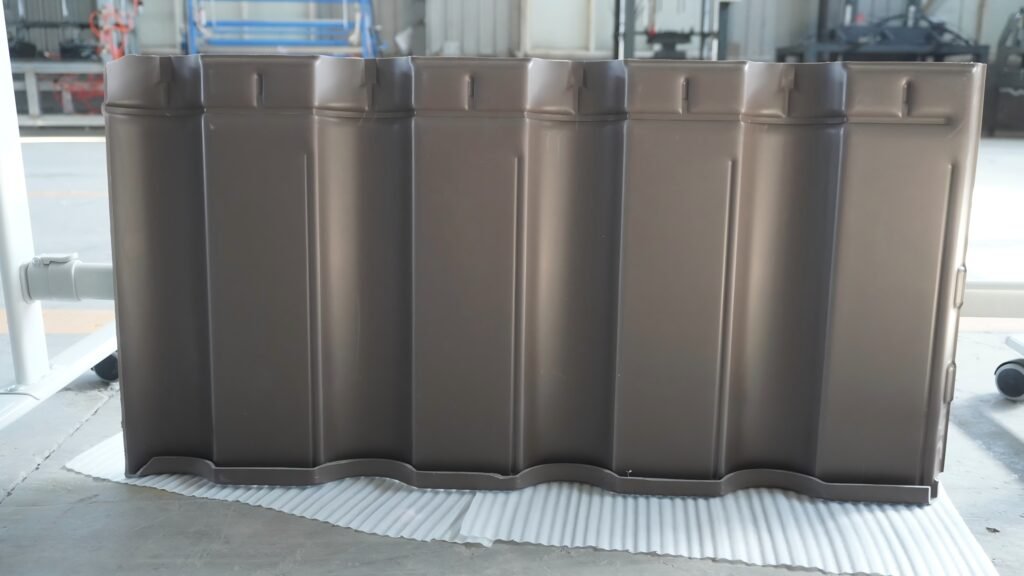

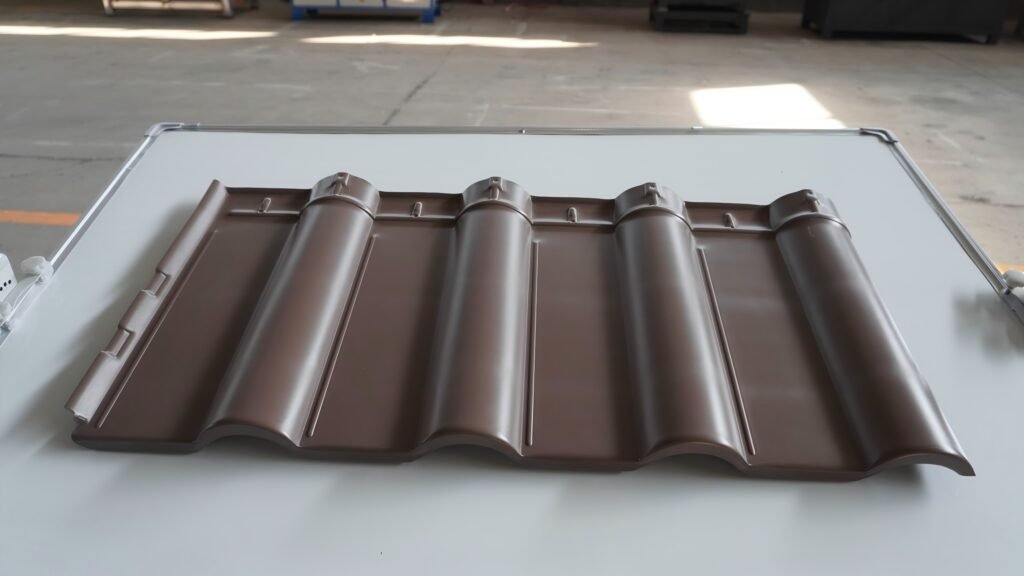

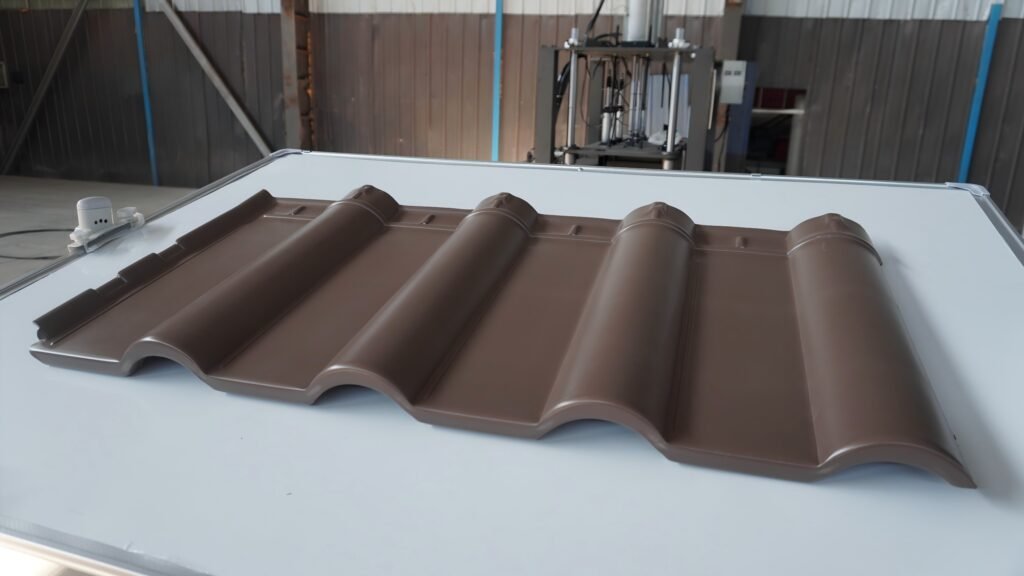

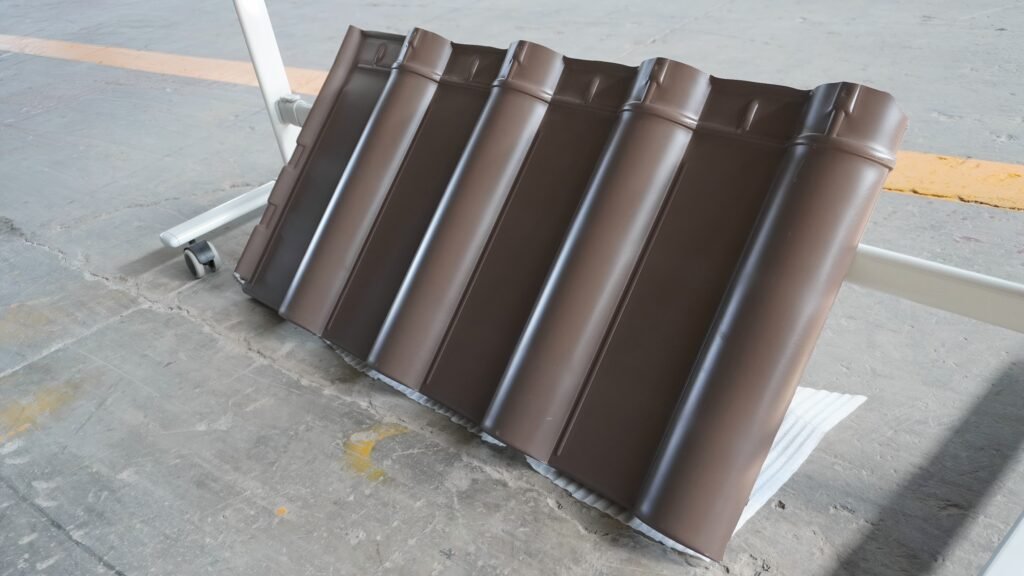

| R-Type Main Tile | 34-1/8″ | 17-5/16″ | 2-5/16″ | 4.96 | 33-1/16″ × 14-3/16″ |

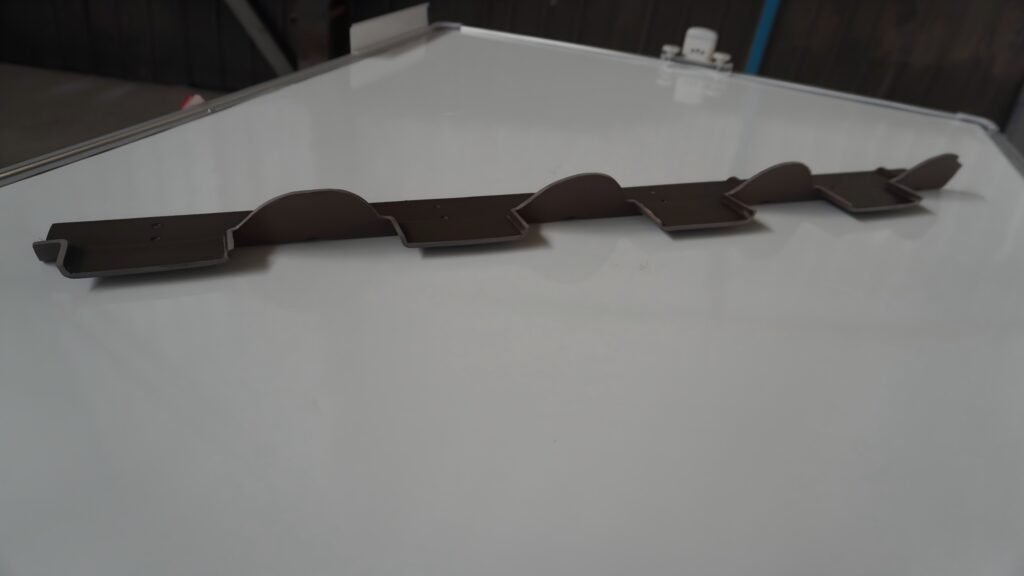

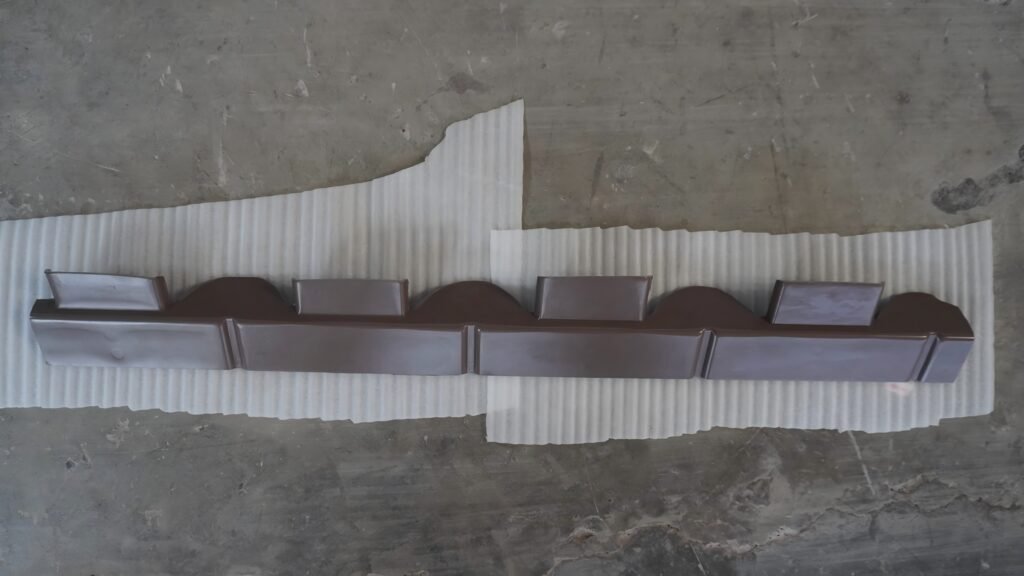

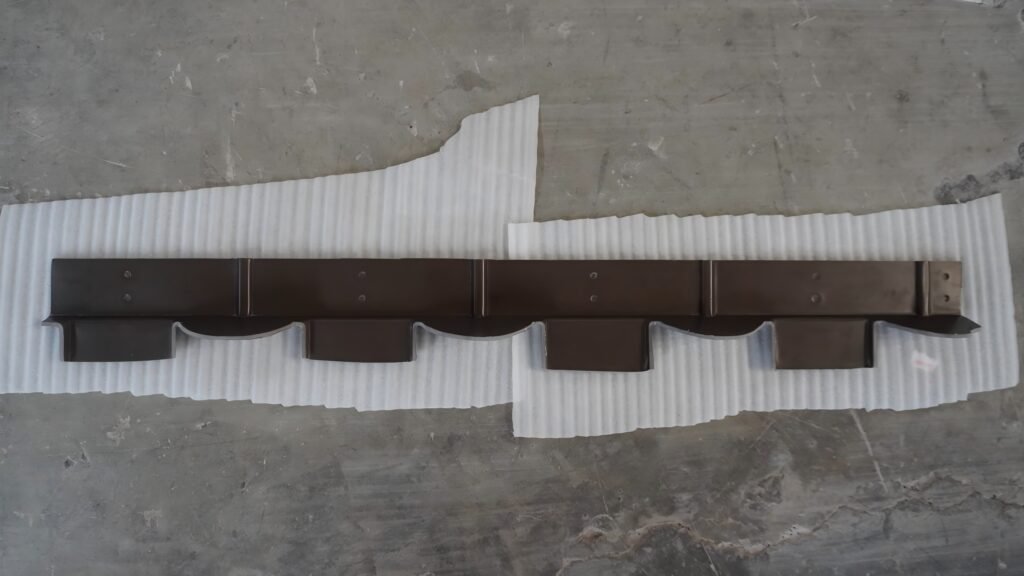

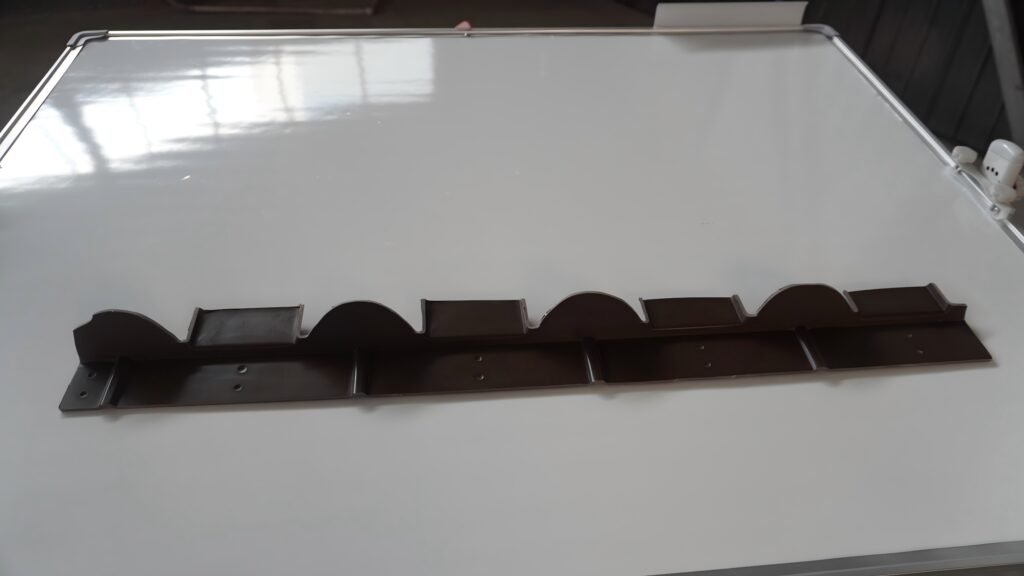

| R-Type Bird Guard | 33-1/16″ | 3-15/16″ | 1-15/16″ | 0.88 | – |
| Ridge Tile (M/R Universal) | 18-1/8″ | 11-7/16″ | 3-13/16″ | 1.65 | 15-1/2″ × 11-7/16″ |

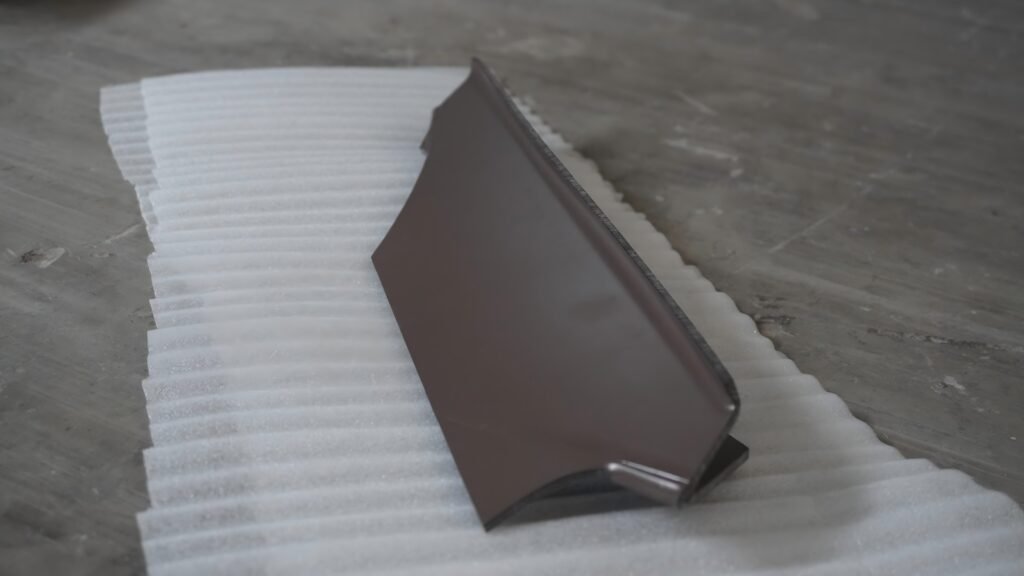

| Side Tile (Right) (M/R Universal) | 18-1/8″ | 5-3/16″ | 4-1/8″ | 1.10 | 14-3/16″ × 4-1/8″ |
| Side Tile (Left) (M/R Universal) | 18-1/8″ | 5-3/16″ | 4-1/8″ | 1.10 | 14-3/16″ × 4-1/8″ |
| Ridge Cap End (M/R Universal) | 9-11/16″ | 7-7/8″ | 4-3/4″ | 0.66 | – |
| Hip Ridge Cap End (M/R Universal) | 18-1/8″ | 11-7/16″ | 3-13/16″ | 1.98 | 15-3/8″ × 11-7/16″ |

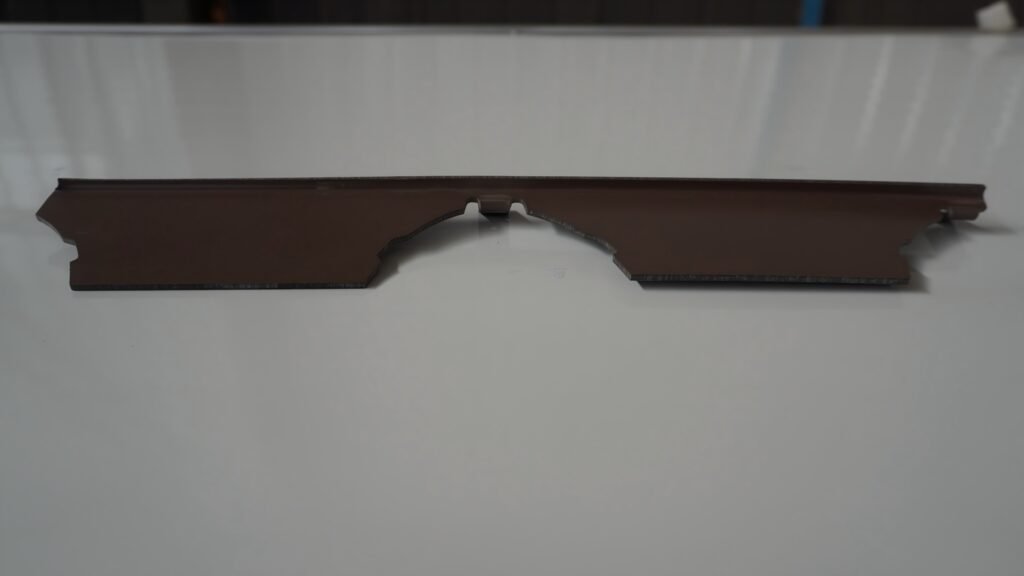

| R-Type S-Shield | 16-1/8″ | 3-1/8″ | 15/16″ | 0.22 | – |

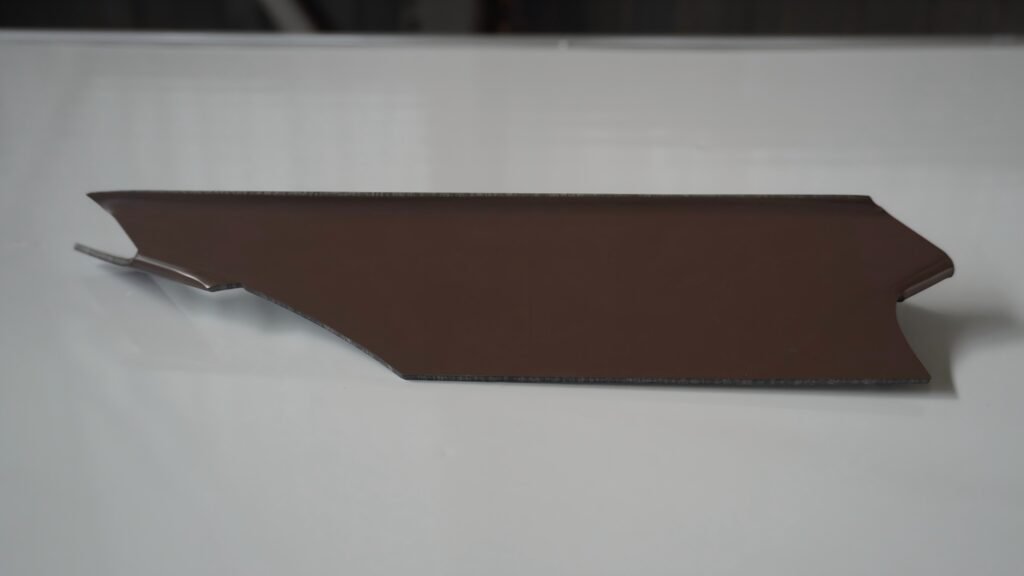

| R-Type Side S-Shield (Right) | 13-1/16″ | 3-1/8″ | 1-5/8″ | 0.11 | – |
| R-Type Side S-Shield (Left) | 13-1/16″ | 3-1/8″ | 1-5/8″ | 0.11 | – |
ACCESSORIES

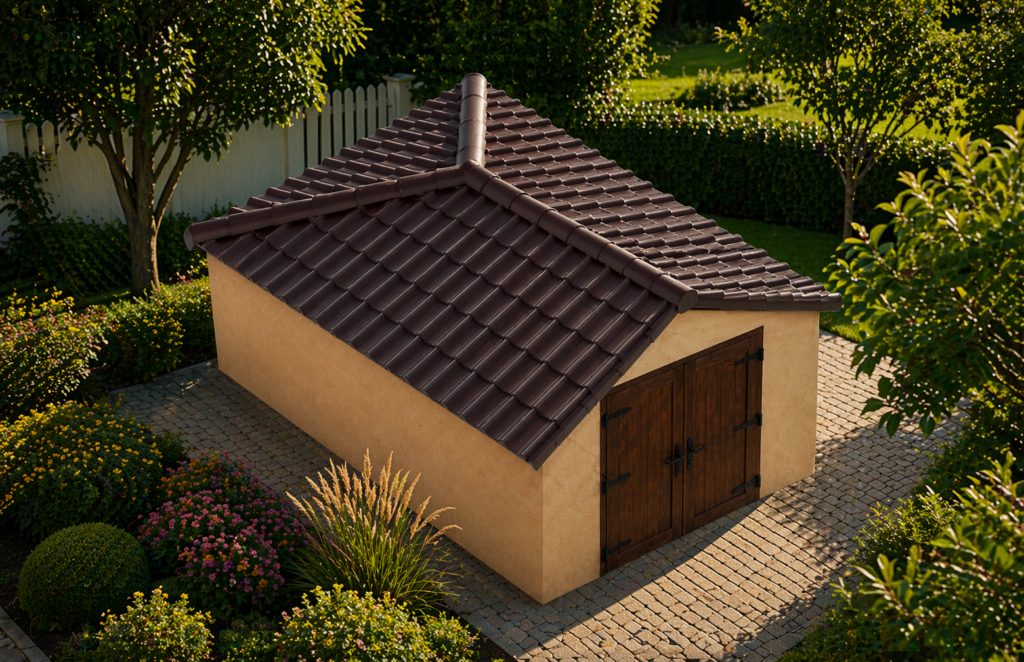

APPLICATION EXAMPLES
